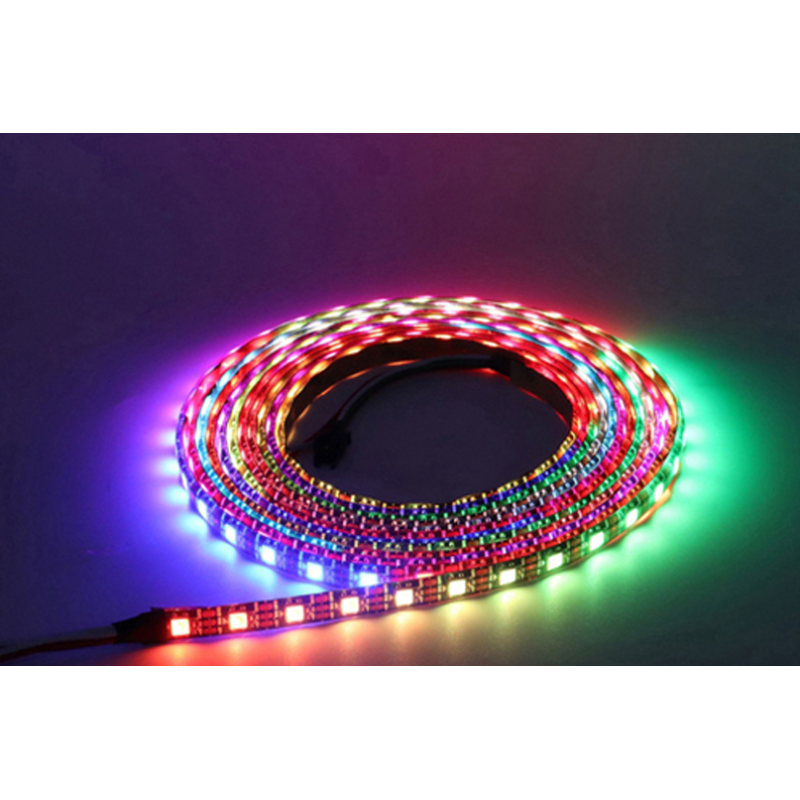

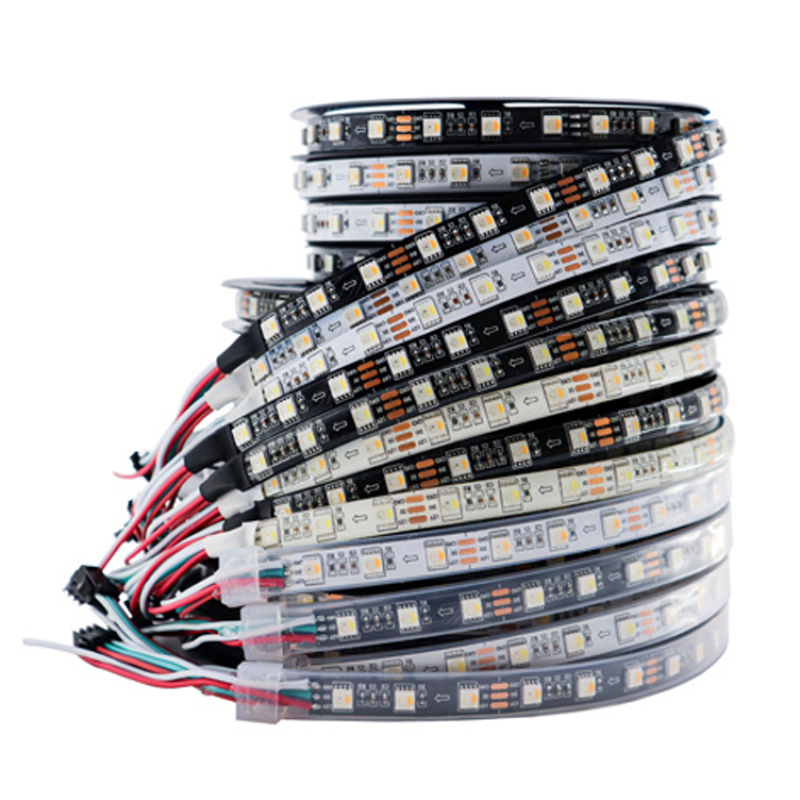

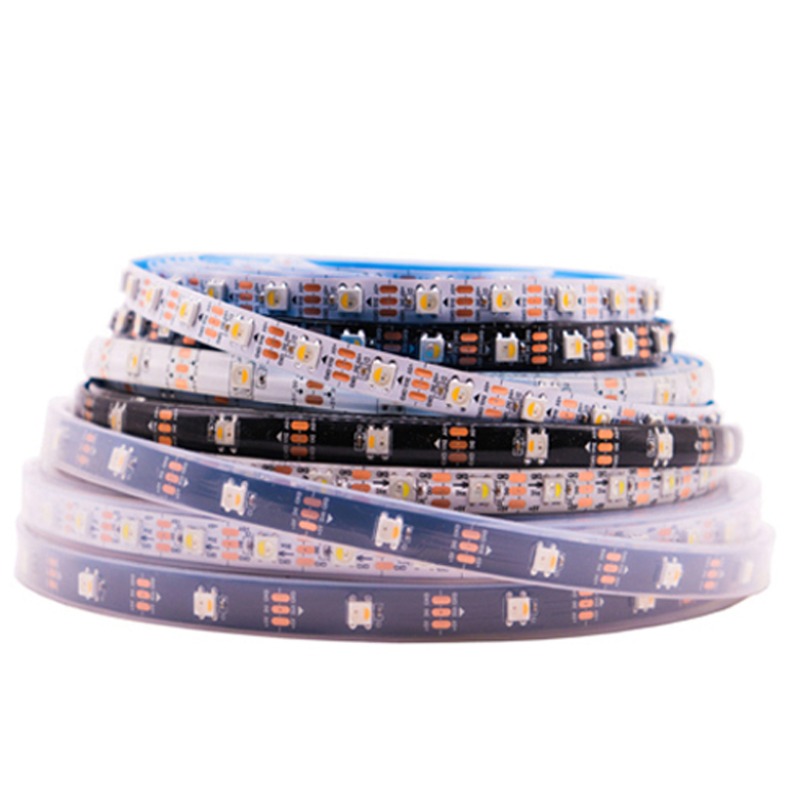

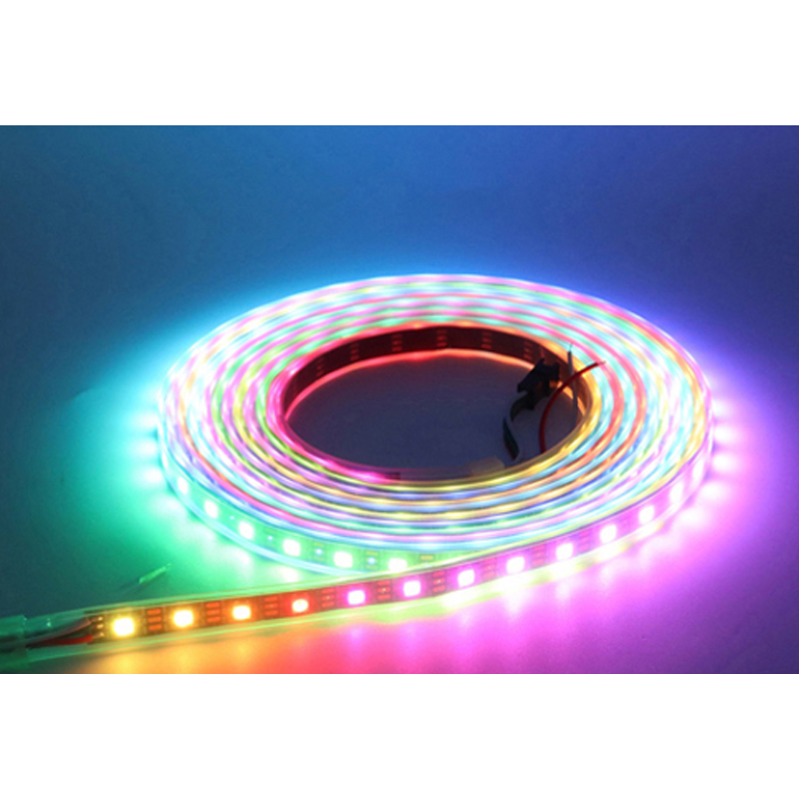

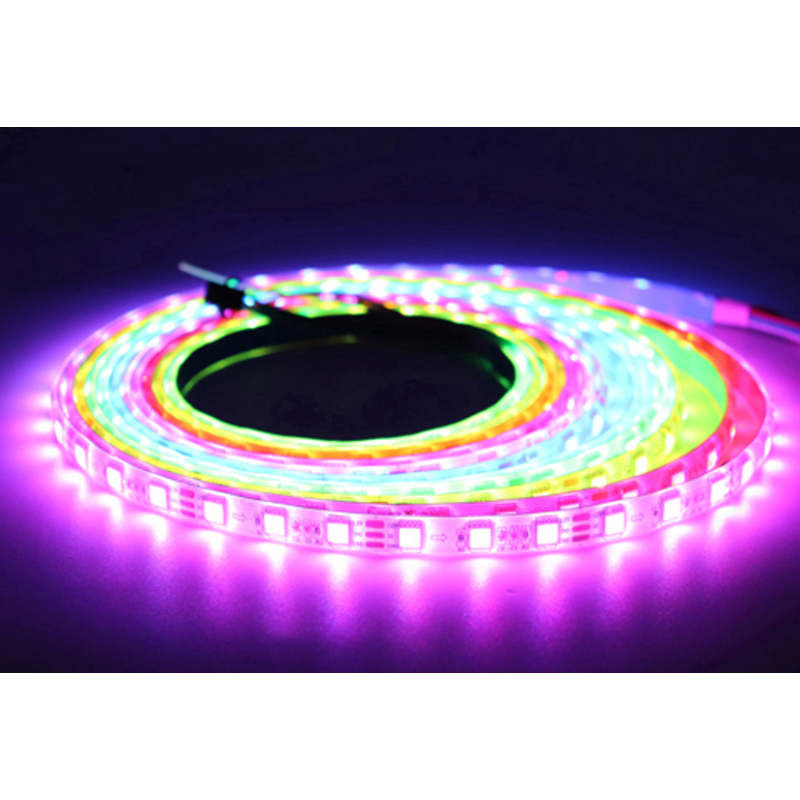

SK6812 Addressable LED Strip - RGBW / RGBNW / RGBWW (5V / 12V)

The SMLIGHT SK6812 LED strip is an addressable RGBW LED strip that combines full RGB color control with a dedicated white channel.
Available in Cold White, Neutral White, or Warm White variants, SK6812 is ideal for applications that require both dynamic color effects and high-quality white light.

With support for both 5V and 12V versions, SK6812 strips can be used in compact installations as well as longer runs with improved power distribution.

Available Variants

• Ingress Protection
  • IP30 – indoor, non-protected
  • IP65 – silicone-coated, splash-resistant
  • IP67 – fully encapsulated, moisture-resistant
• LED Density
  • 30 LEDs/m
  • 60 LEDs/m
  • 144 LEDs/m
• Color Type
  • RGBW – RGB + Cold White
  • RGBNW – RGB + Neutral White
  • RGBWW – RGB + Warm White
• PCB Color
  • White
  • Black
• Supply Voltage
  • 5V DC
  • 12V DC (available only for 60LED/m density)

Key Features

• SK6812 addressable RGBW LEDs
• Dedicated white channel for natural white lighting
• 5V or 12V operation (variant-dependent)
• Individually addressable LEDs
• Single-wire digital data control
• Compatible with WLED, ESPHome, and SMLIGHT LED controllers
• Flexible PCB for easy installation

Typical Use Cases

• Smart home lighting with true white tones
• Ambient and accent lighting
• Decorative and architectural lighting
• LED strips behind TVs, shelves, and furniture
• DIY and professional integrator projects

Electrical & Mechanical Characteristics

• LED type: SK6812
• Supply voltage: 5V DC / 12V DC
• Control: Single-wire digital data
• Color depth: RGB + dedicated White channel
• Cuttable at marked segments
• Flexible PCB

Length & Packaging Format

• 30 / 60  LEDs/m
  → Supplied as 5-meter rolls (factory-soldered 5 pieces)
• 144  LEDs/m
  → Supplied as 1-meter piece

Compatibility

• SLWF-03 LED Controller
• SLWF-09 Modular LED Controller
• ESP32 / ESP8266-based LED controllers
• WLED-compatible systems

Packaging

• Antistatic protective bag

Packing Content

• SK6812 LED Strip (density, IP rating, PCB color, Voltage as selected)
