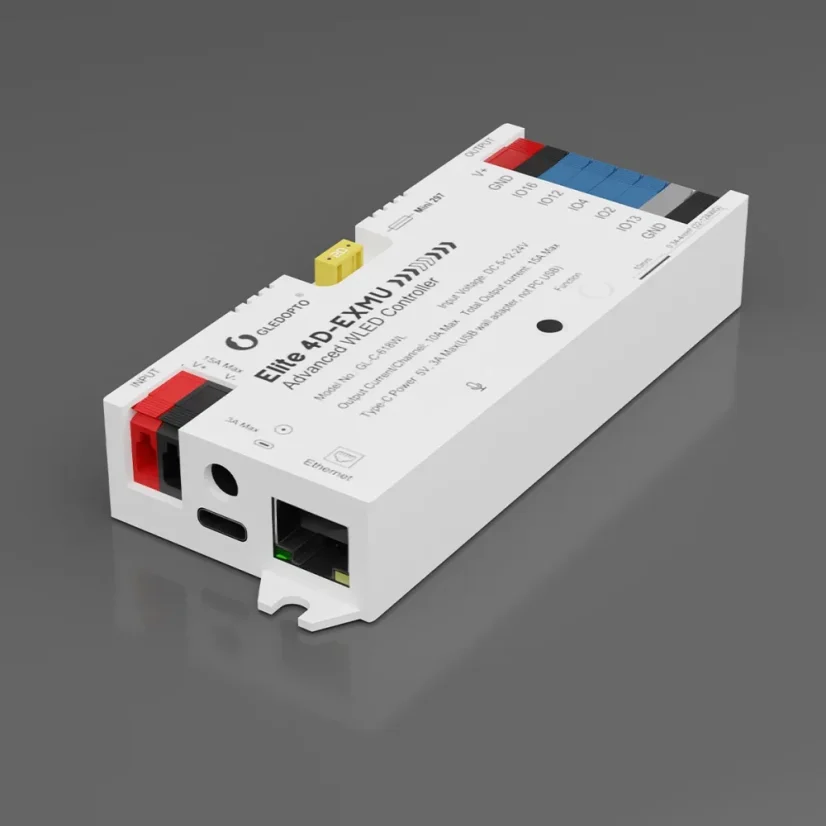

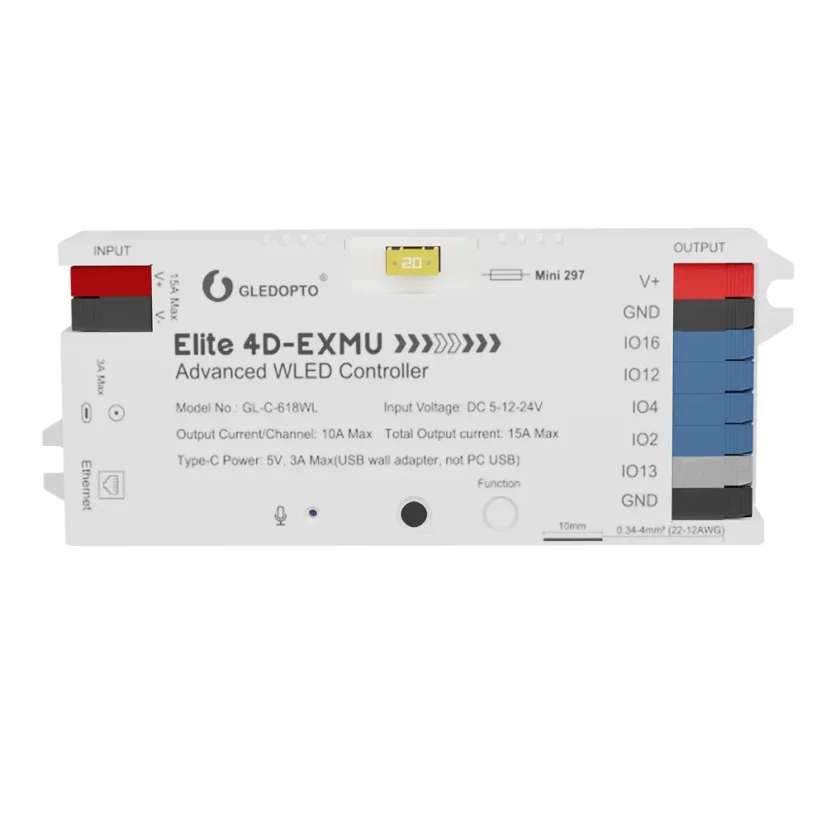

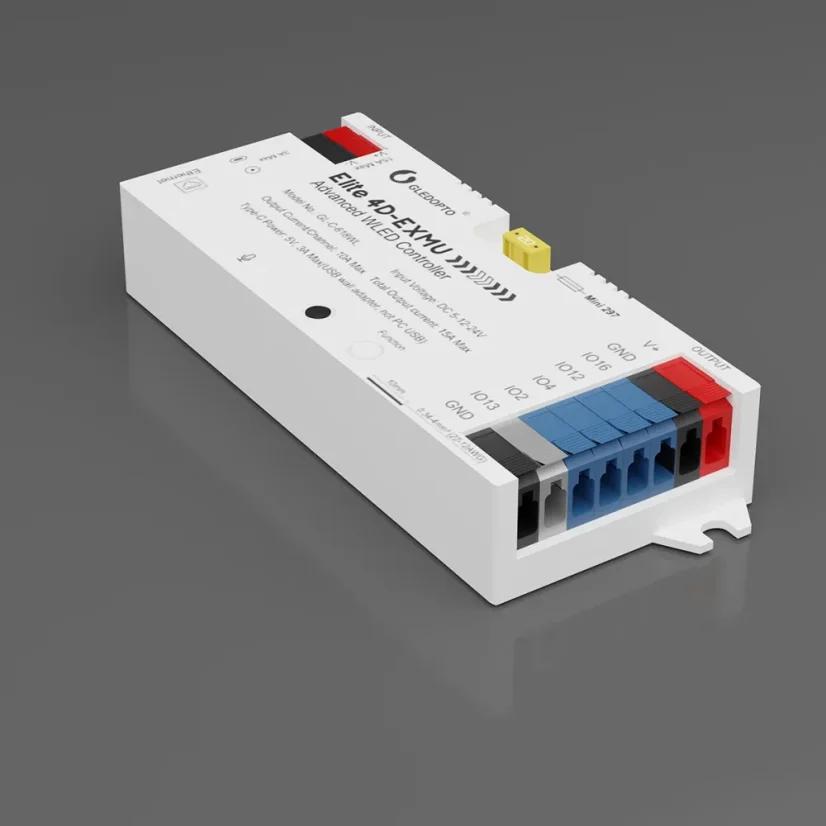

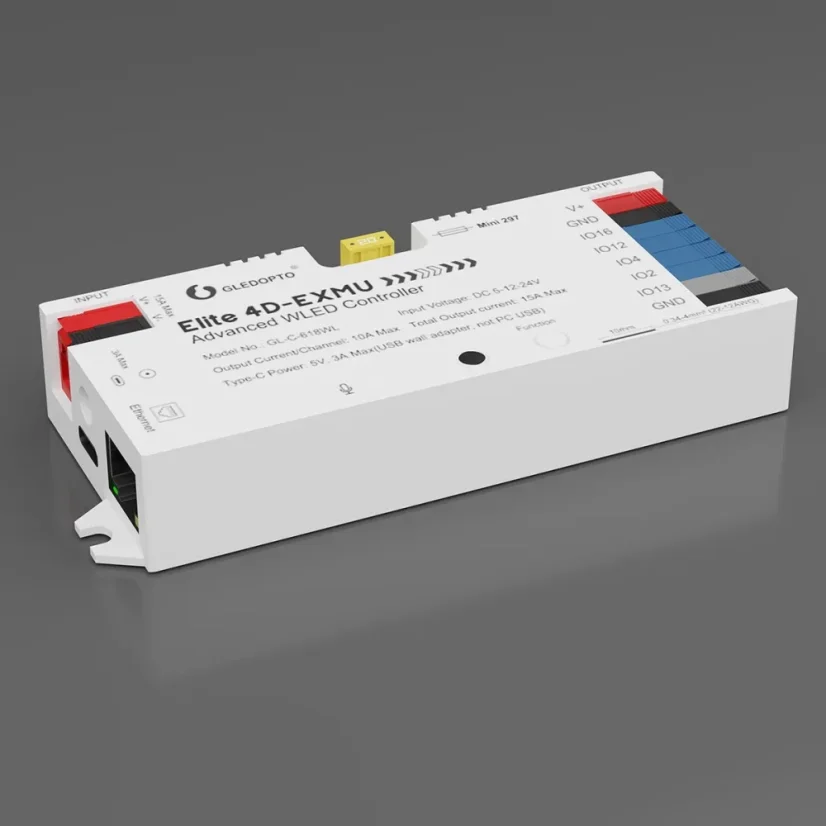

GLEDOPTO GL-C-618WL Elite 4D-EXMU – Advanced WLED Controller for Addressable LED Strips

The GLEDOPTO GL-C-618WL, also known as the Elite 4D-EXMU, is a highly advanced controller designed to manage addressable RGBIC LED strips. Equipped with an ESP32 chip and integrated WLED open-source firmware, it provides robust configuration options for complex lighting installations.

Network and Connectivity

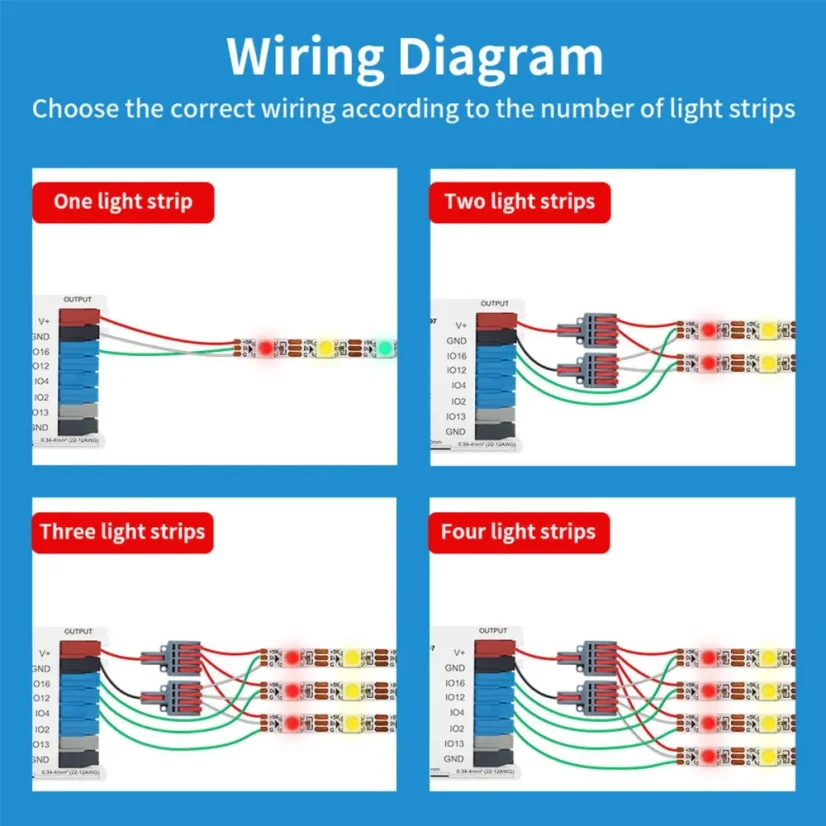

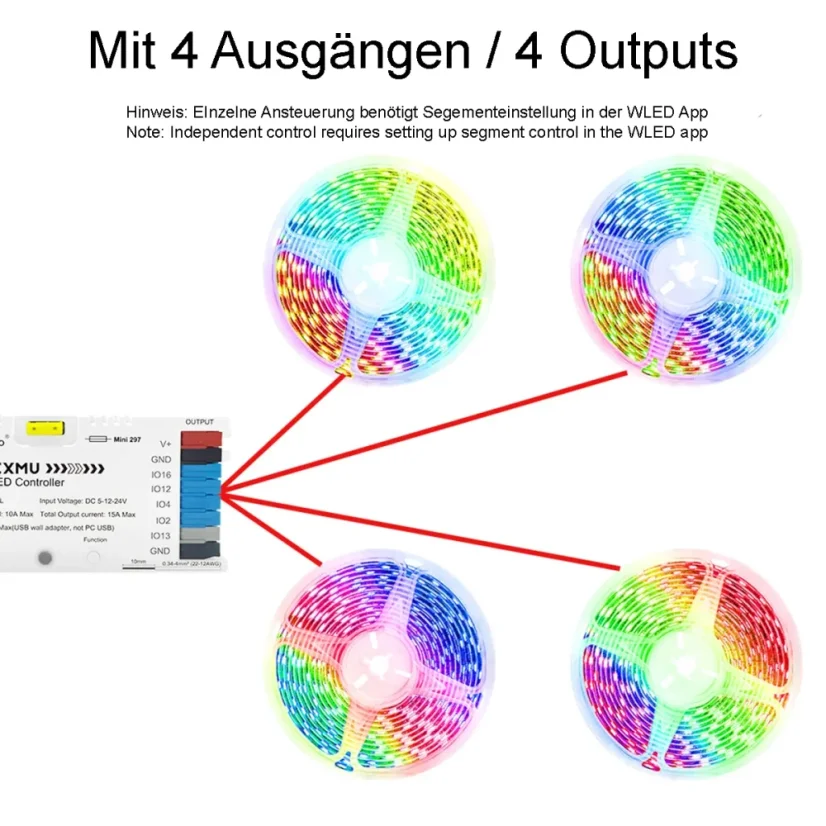

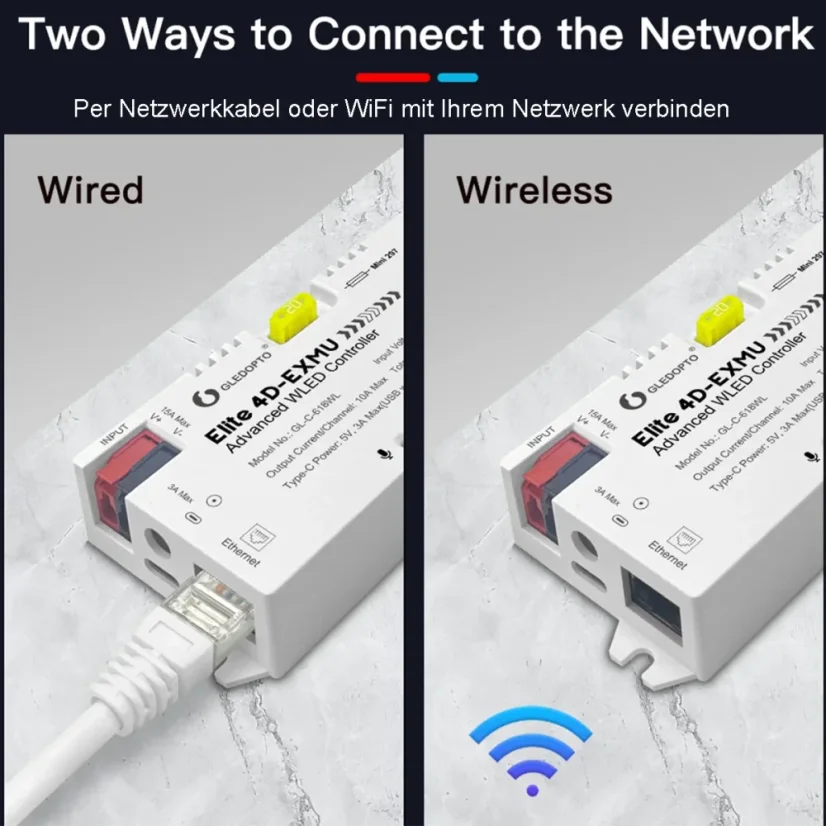

This controller supports both wireless WiFi and wired Ethernet connections, ensuring a stable and reliable network link for uninterrupted operation. It features four independent outputs, allowing users to control up to four digital LED strips simultaneously from a single hub.

Audio Synchronization and Compatibility

A built-in microphone enables audio-reactive lighting effects that seamlessly synchronize your LED strips with ambient sound and music. The device is widely compatible with most digital addressable LED strips on the market, including WS2811, WS2812B, SK6812, and WS2815.

Technical Specifications

The controller operates within a versatile voltage range and supports high-capacity power outputs suitable for large-scale lighting setups. It can be powered via standard DC terminals or through a convenient Type-C connection.
