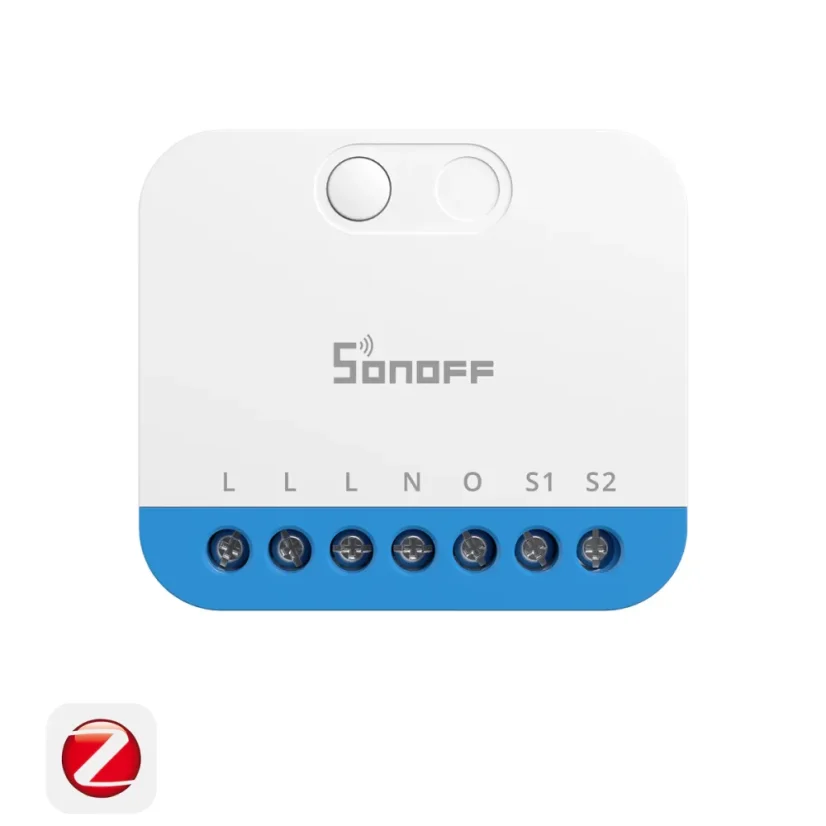

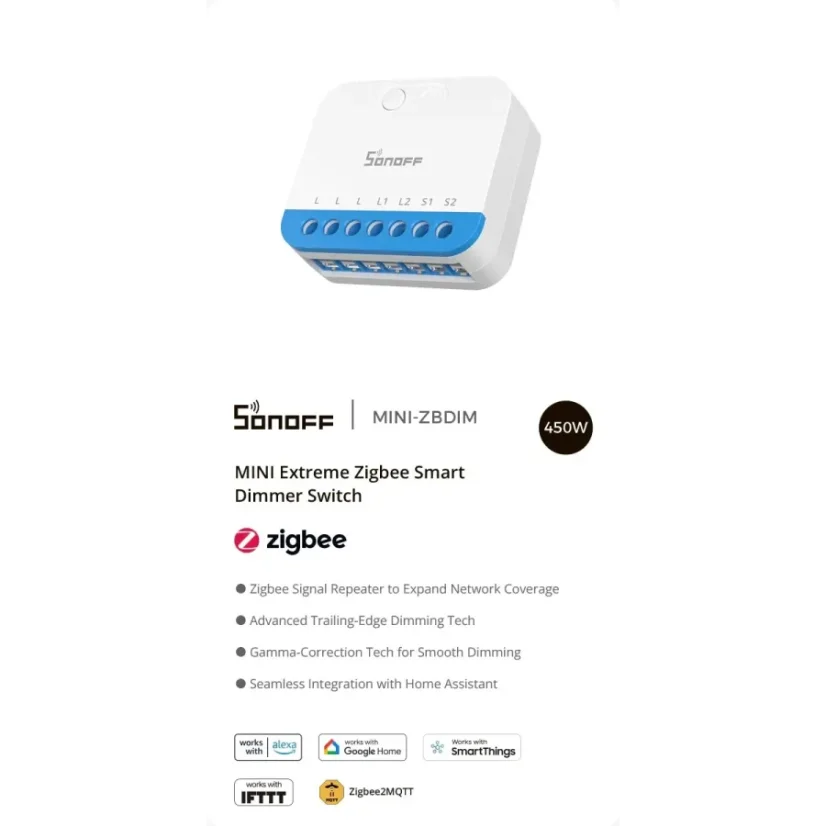

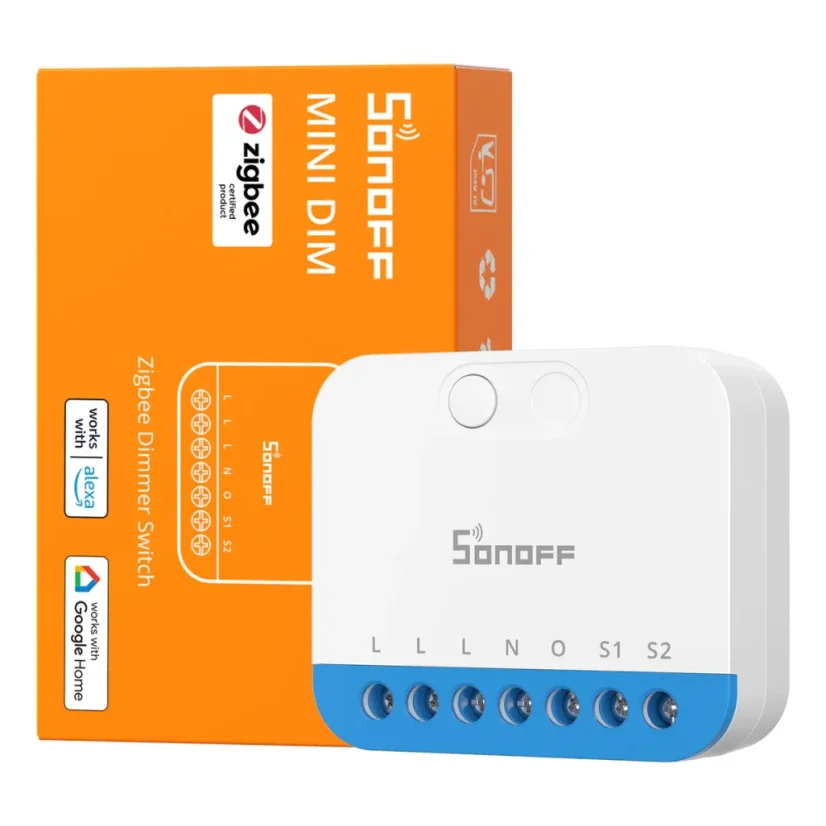

SONOFF MINI Extreme Zigbee Dimmer Switch | MINI-ZBDIM

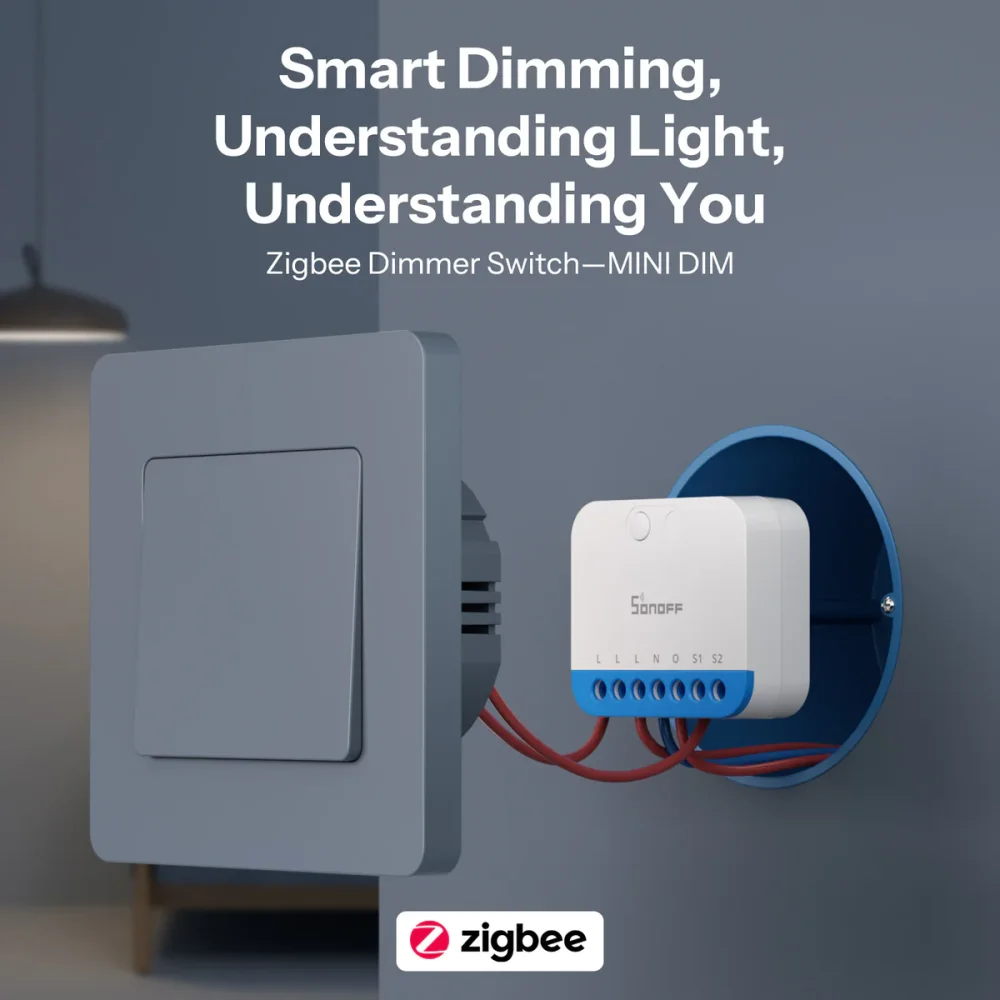

The SONOFF MINI Extreme Zigbee Dimmer (MINI-ZBDIM) is an ultra-compact smart dimmer switch using the Zigbee 3.0 protocol, designed for seamless and precise control of your lighting brightness. Thanks to its miniature dimensions, it easily fits into standard electrical junction boxes, turning any ordinary light into a smart element of your home. It supports a wide range of bulbs and offers advanced features such as energy monitoring and brightness calibration. More
The SONOFF MINI Extreme Zigbee Dimmer (MINI-ZBDIM) is an ultra-compact smart dimmer switch using the Zigbee 3.0 protocol, designed for seamless and precise control of your lighting brightness. Thanks to its miniature dimensions, it easily fits into standard electrical junction boxes, turning any ordinary light into a smart element of your home. It supports a wide range of bulbs and offers advanced features such as energy monitoring and brightness calibration. More

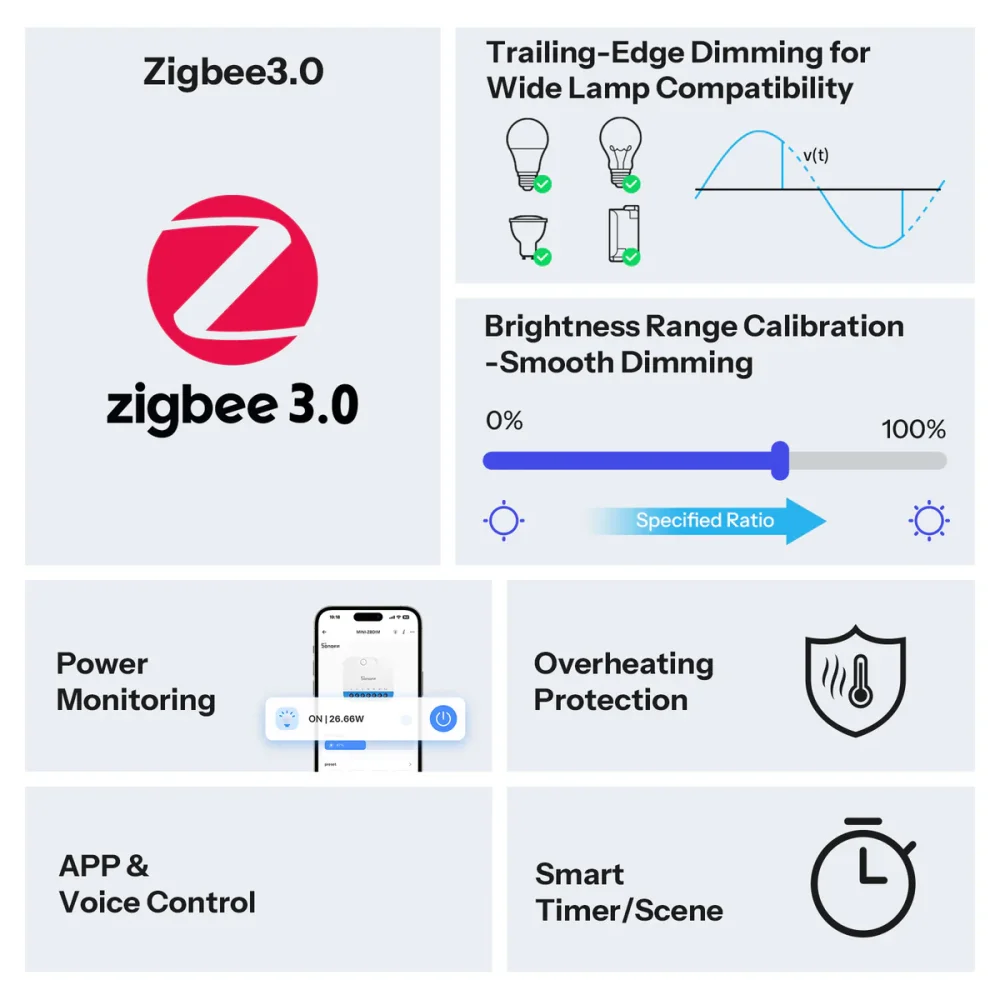

Key Features:
-
Smooth Dimming (Trailing-edge): Trailing-edge technology ensures high stability and broad compatibility with modern dimmable LED bulbs as well as traditional light sources.
-
Ultra-Compact Size: With a thickness of only 16.8 mm, it is one of the smallest dimmers on the market, making installation in tight spaces behind switches effortless.
-

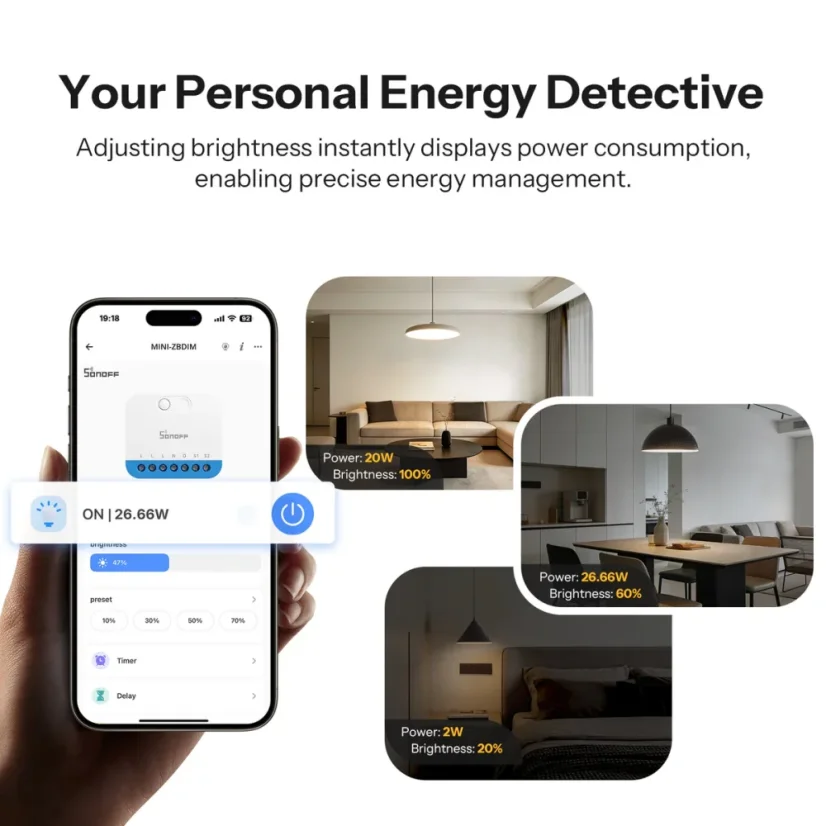

Energy Consumption Monitoring: Track real-time power output (W) directly in the app to keep your lighting's energy efficiency under control.
-
External Switch Support: Compatible with both rocker and momentary (push-button) switches. It also supports multi-way control (e.g., for staircase lighting setups).
-
Zigbee 3.0 Protocol: Requires a Zigbee gateway (e.g., SONOFF ZBBridge Pro, iHost, or USB Dongle) and acts as a Zigbee router to strengthen your network stability.
-
Matter Compatibility: Through a compatible Zigbee bridge (such as ZBBridge-U), it can be easily integrated into Apple Home, Google Home, or Amazon Alexa ecosystems.
Maximum Compatibility and Stability The MINI-ZBDIM utilizes trailing-edge dimming technology, which is ideal for modern dimmable LED bulbs (up to 200VA) as well as classic halogen or resistive bulbs (up to 400W). The brightness calibration feature in the eWeLink app allows you to set the minimum and maximum levels to prevent flickering and ensure perfectly linear dimming.
Smart Automation and Voice Control Set schedules to automatically dim the lights for relaxation in the evening, or use the fade-in/fade-out function, which is gentler on your eyes and extends bulb life. With Alexa and Google Assistant integration, you can change brightness with a simple command: "Set the living room light to 50%".
Versatile Wiring Options The device supports various types of external switches. You can connect classic rocker switches or momentary buttons, where the buttons allow not only for on/off control but also for smooth brightness adjustment by holding the button down.
| Specification | Value |
| Model | MINI-ZBDIM |
| Connectivity | Zigbee 3.0 (IEEE 802.15.4, 2.4 GHz) |
| Input Voltage | 220–240 V AC ~ 50 Hz |
| Max. Load (LED) | 200 VA (at 240 V) |
| Max. Load (Incandescent) | 400 W (at 240 V) |
| Max. Current | 2 A |
| Dimensions | 45 x 39.4 x 16.8 mm |
| Operating Temperature | -10°C to +40°C |
| Casing Material | PC V0 (Flame-retardant polycarbonate) |
| Installation | Neutral wire (N) and Phase wire (L) required |

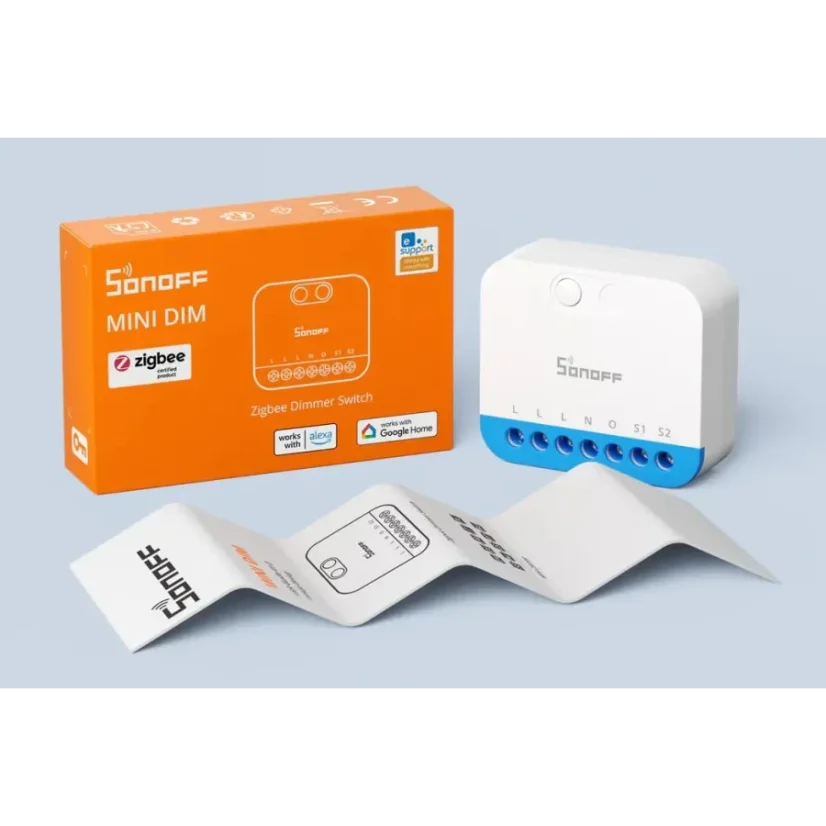

Package Contents:
-
1x SONOFF MINI-ZBDIM Extreme Zigbee Dimmer
-
1x Mounting Bracket (for DIN rail or screw mounting)
-
1x User Manual
Note: A central Zigbee gateway is required for full functionality and app control.
| Protocol | Zigbee 3.0 |
|---|---|
| Power supply | 230V |
| Maximum load | 2A |
| Material | Plastic |
