Zigbee Mini Ultra Thin LED Controller 5in1

The Gledopto Zigbee Mini Ultra Thin LED Controller 5in1 is a compact and highly functional device designed for controlling various types of LED lighting. This model supports five different modes: RGB+CCT, RGBW, RGB, CCT, and dimmer, making it a versatile solution for a wide range of lighting applications.

Key Features:

• Multi-mode support: Controls LED strips in RGB+CCT (color + warm/cool white), RGBW (color + white), RGB (color), CCT (warm/cool white), and dimmer (for single-color strips) modes.
• Wide compatibility: Works with most Zigbee 3.0/ZLL gateways, including Philips Hue, Amazon Echo Plus, SmartThings, Tuya, and others.
• Remote control support: In addition to Zigbee, the device can be controlled using 2.4GHz RF remote controls and Gledopto wireless wall panels.
• Compact dimensions: With small dimensions (70 x 36 x 10 mm), it's ideal for installations in limited spaces.

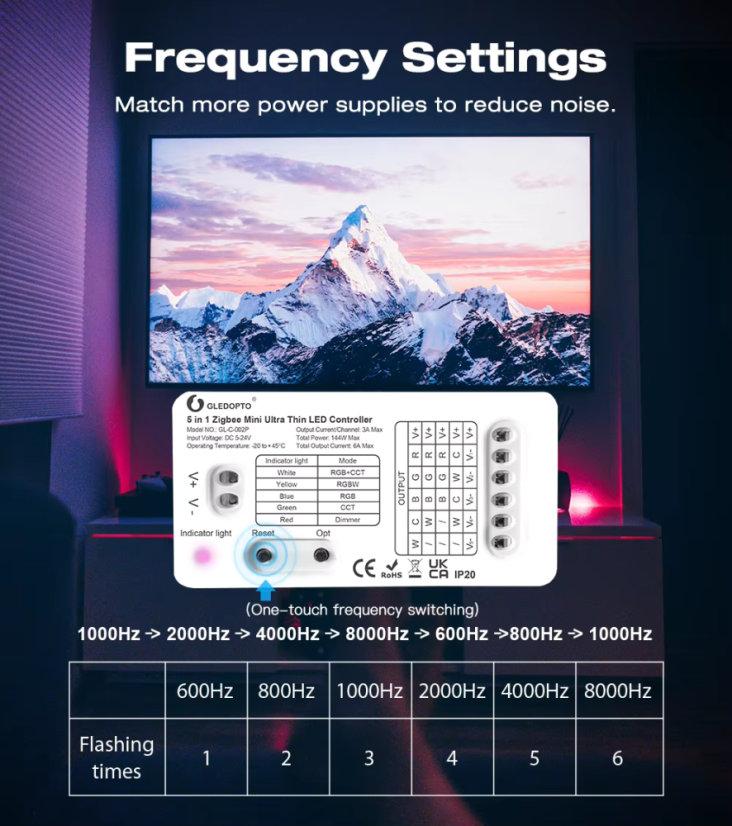

• PWM frequency support: Allows setting PWM frequency (600 Hz to 8000 Hz) for optimizing power supply and minimizing interference or light flickering.
• Voltage and power: Supports LED strips with 5V, 12V, or 24V voltage with a maximum current of 6A per channel (total max 144W at 24V).

Technical Specifications:

• Voltage: DC 5V - 24V
• Maximum current: 6A total (3A per channel)
• Dimensions: 70 x 36 x 10 mm
• Weight: 23.5 g
• Operating temperature: -20°C to +45°C
• Compatibility: Zigbee gateways (Philips Hue, Amazon Echo Plus, SmartThings, Tuya), Gledopto RF remote controls

Advantages:

• Ability to control various types of LED lighting with a single device.
• Compatibility with a wide range of smart home systems.
• Easy installation thanks to small dimensions and simple setup.

The Gledopto Zigbee Mini Ultra Thin LED Controller is an ideal choice for those looking for a flexible and compact solution for smart lighting control in their home or commercial spaces.
