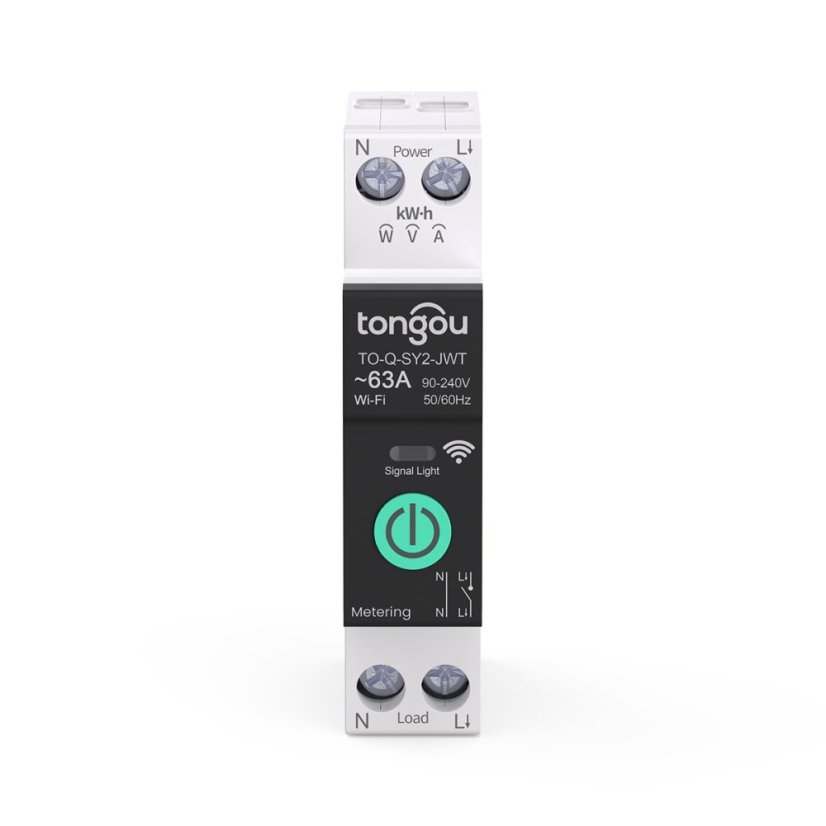

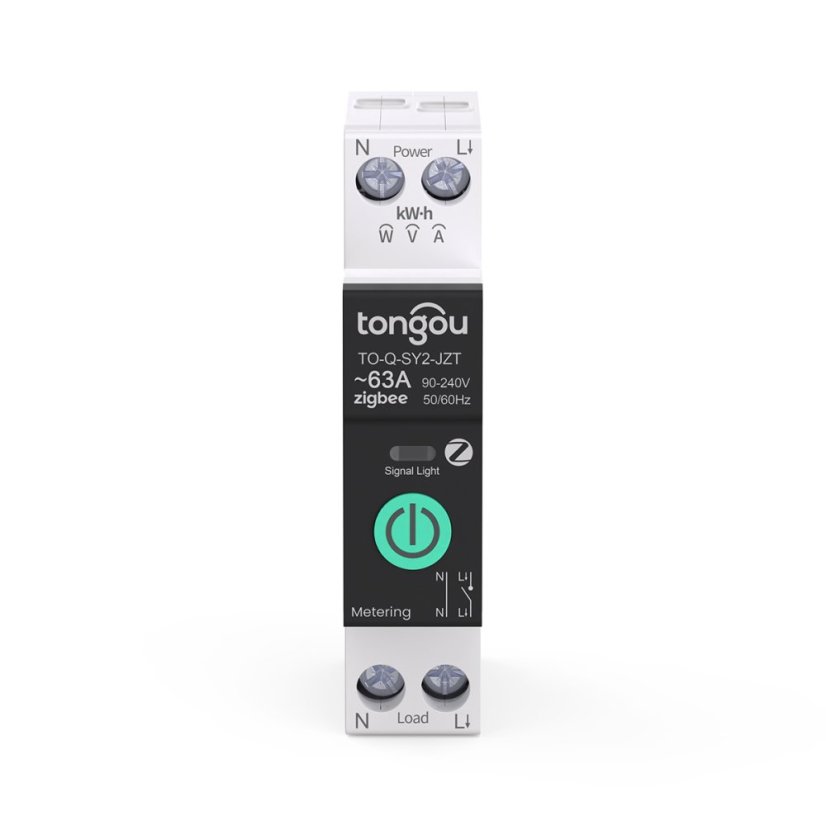

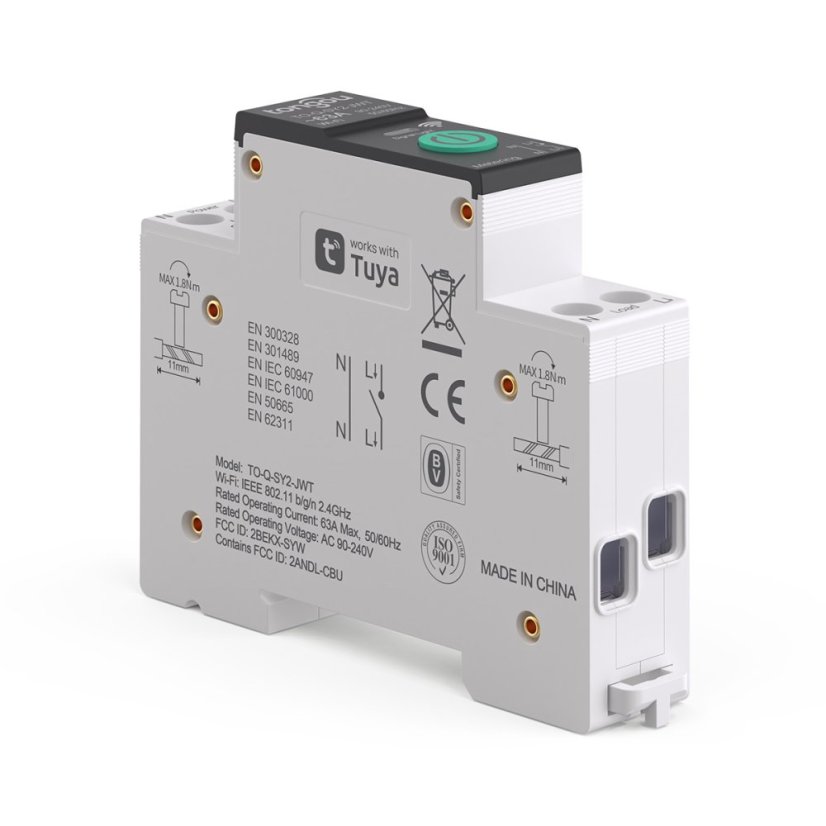

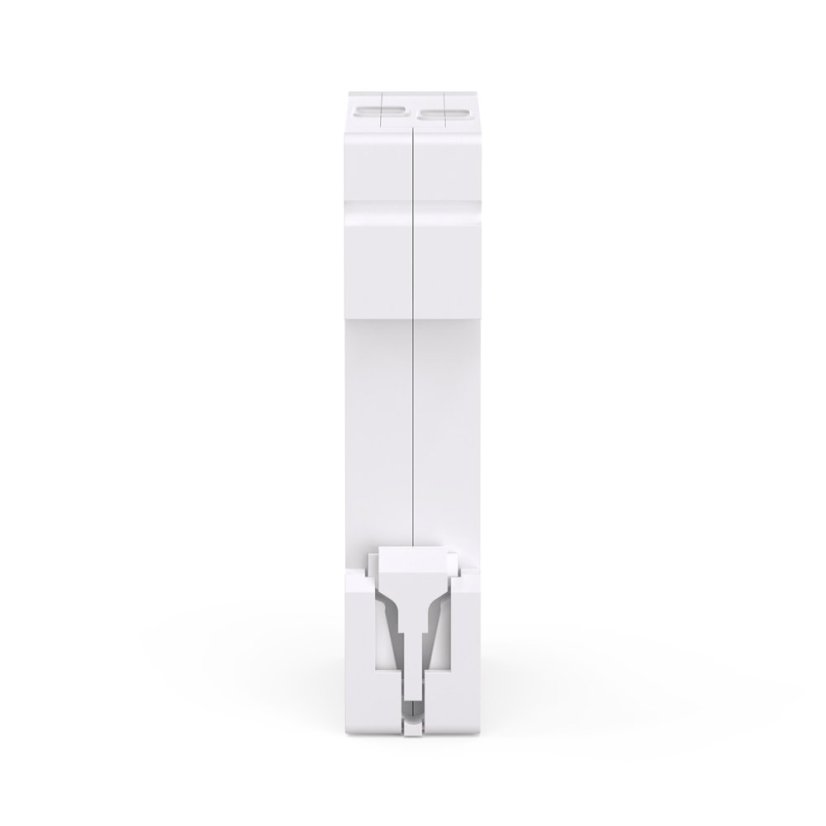

Tongou Tuya Smart Circuit Breaker 1-63A

Main Features:

• Adjustable current 1–63 A – suitable for a wide range of home and industrial applications

• Overload, overvoltage, undervoltage, and overheat protection – the breaker automatically disconnects the circuit when set values are exceeded, protecting devices and wiring ( Warning - it does not replace a regular circuit breaker! )

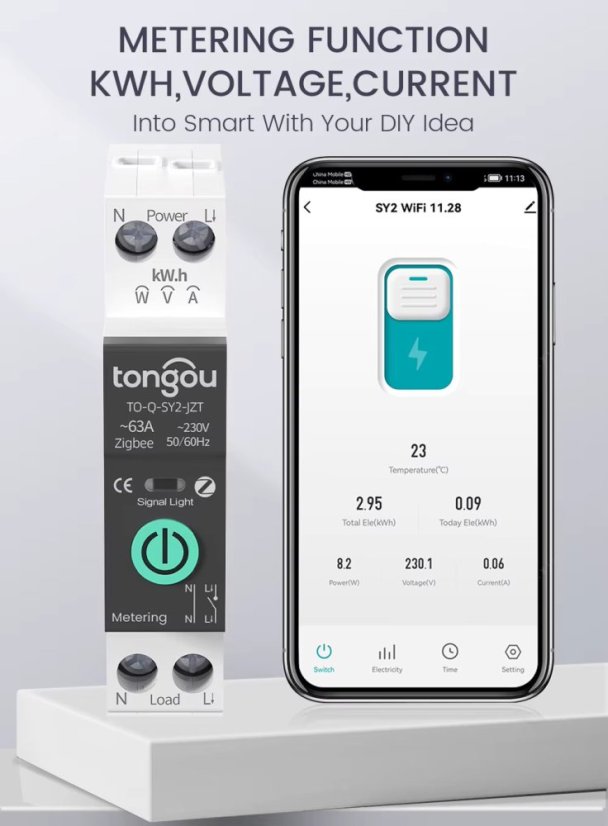

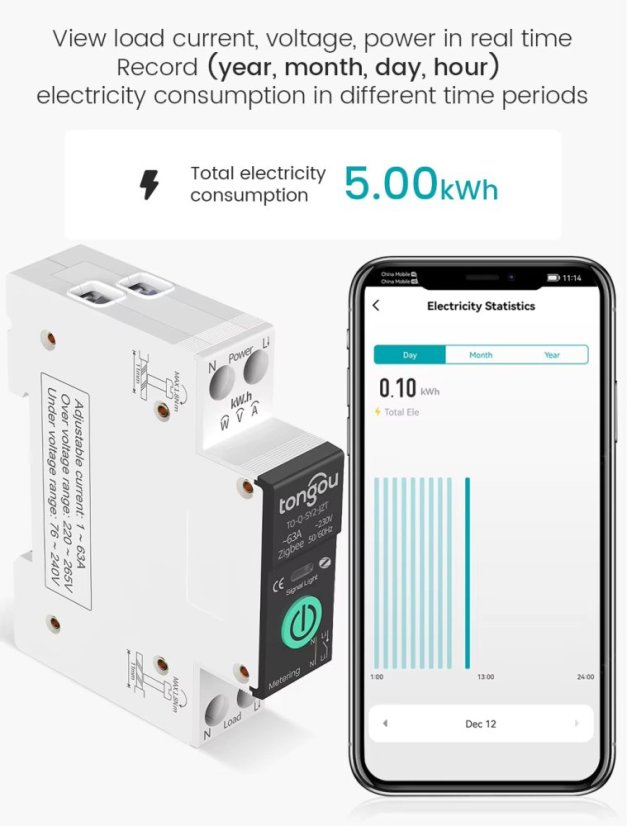

• Energy monitoring – monitor current and historical energy consumption (daily, monthly, yearly statistics)

• Remote control and monitoring – control and monitor the breaker via mobile app (Android, iOS, HarmonyOS) or voice assistants like Google Assistant or Amazon Alexa

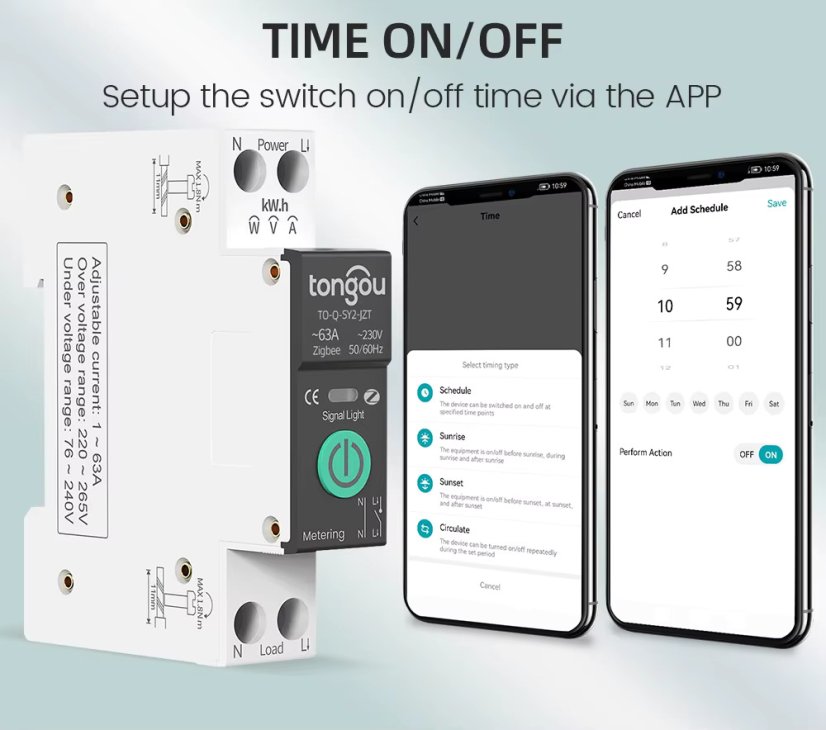

• Timers, scheduling, and automation – set countdowns, scheduled switching, and automatic scenarios as needed

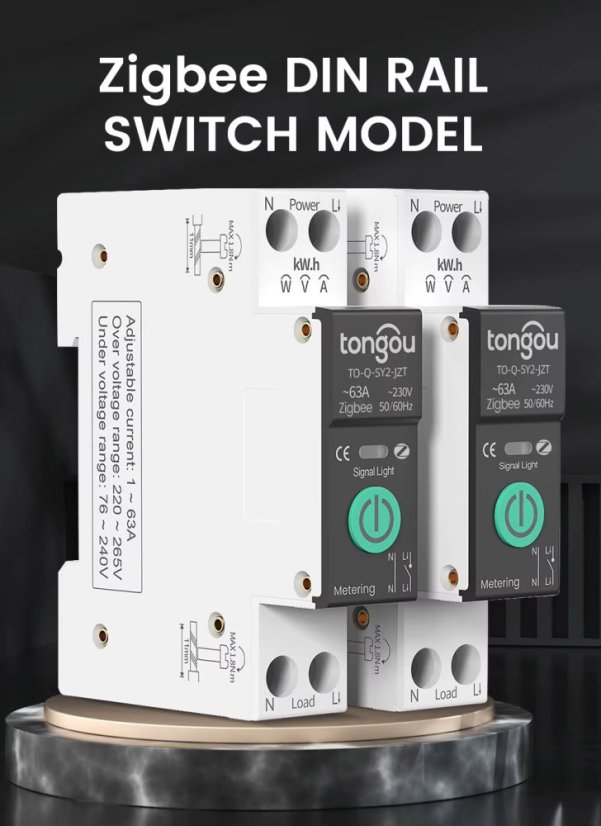

• DIN rail installation – easy mounting in the distribution box, compact dimensions

• OTA update support – allows remote firmware updates for new features and enhanced security

Please note: this is not a regular circuit breaker and does not have the classic tripping characteristics of standard circuit breakers. It is more of a relay with a maximum tripping current that can be set.

Technical Specifications:

• Communication protocol: ZigBee 3.0 (2.4 GHz)

• Rated current: 1–63 A (adjustable in the app)

• Operating voltage: 90–240 V AC

• Frequency: 50/60 Hz

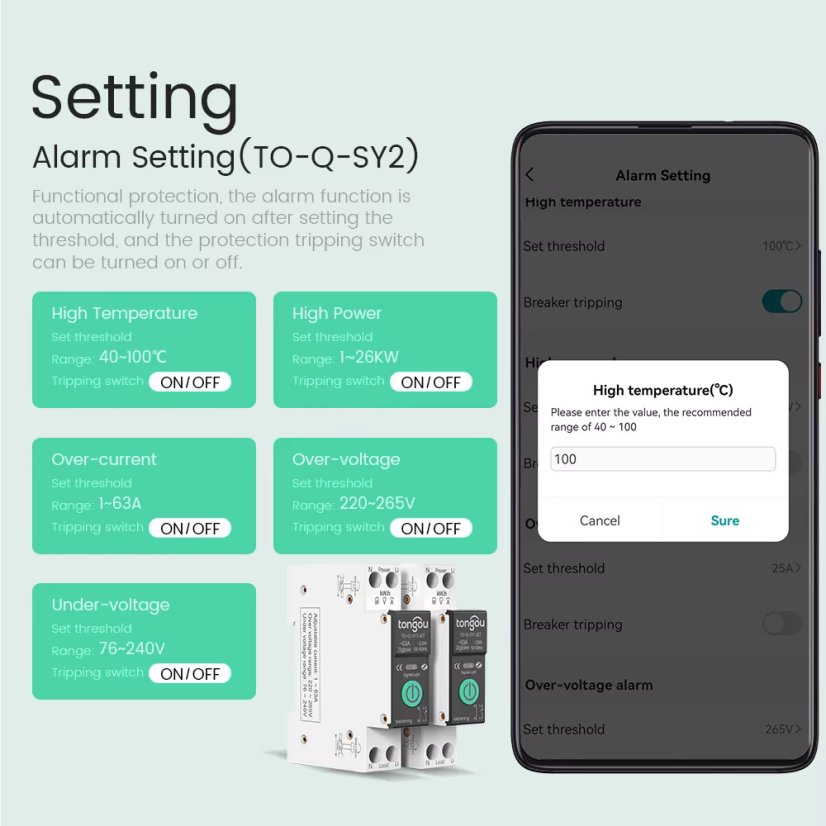

• Protection: overload, overvoltage (220–265 V), undervoltage (76–240 V), overheat (40–100 °C), overpower (1–26 kW)

• Disconnection time: 5 seconds

• Number of poles: 1P+N (pass-through N pole)

• Installation: DIN rail

• Operating temperature: -25 °C to +70 °C

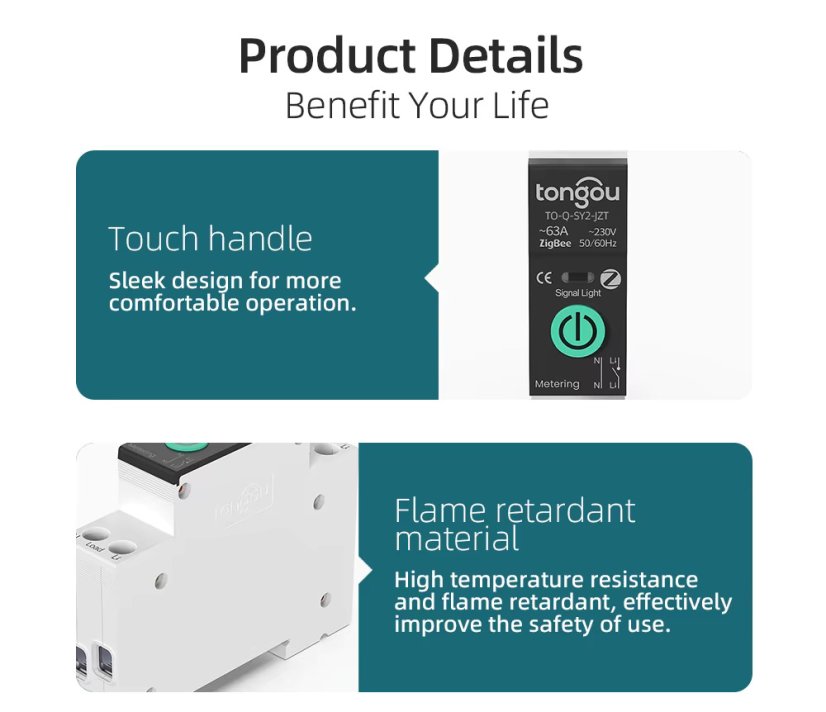

• Material: flame-retardant PC V0 plastic

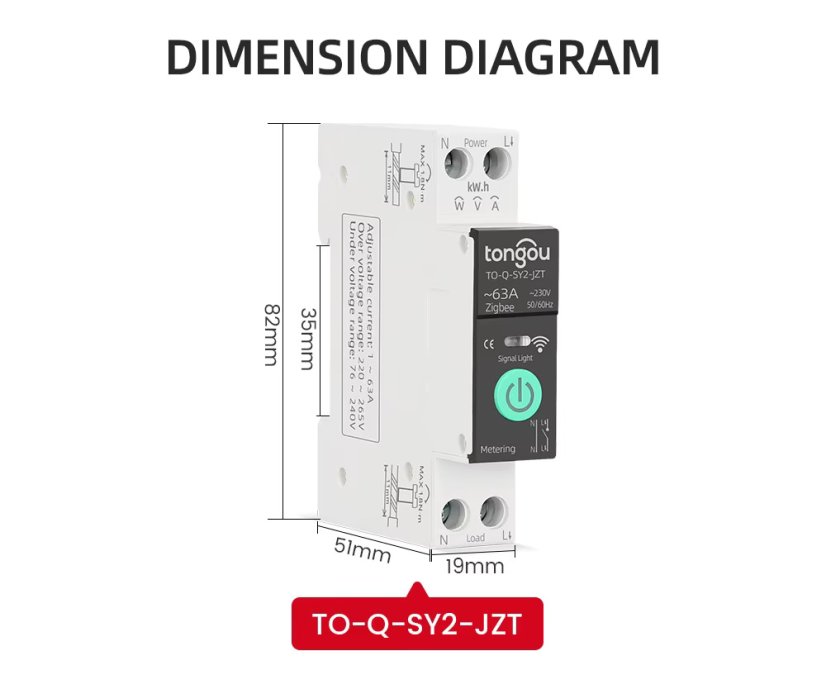

• Dimensions: approx. 82 × 18 × 66 mm

• Protection rating: IP20

• Electrical lifespan: up to 100,000 cycles

Compatibility:

Tuya, Smart Life, Home Assistant, Zigbee2MQTT, Amazon Alexa, Google Assistant, Apple Siri Shortcuts

Package Contents:

• ZigBee Smart Breaker TO-Q-SY2
• User manual
