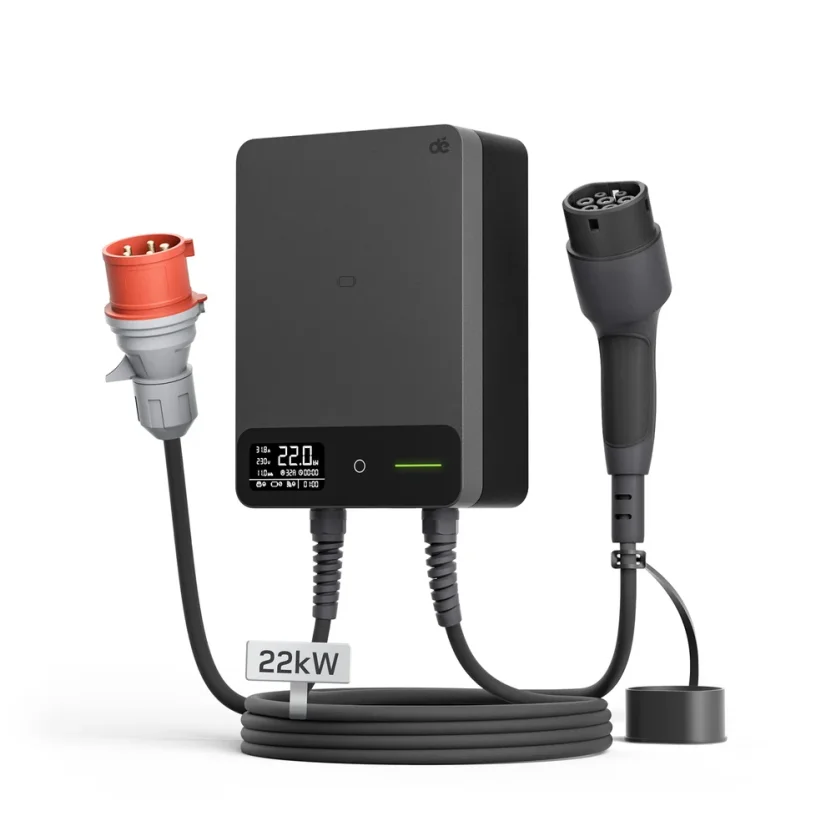

dé Wallbox 22kW

dé Wallbox 22kW is a reliable charging station designed for both home and commercial use, offering the option of WiFi connectivity. With the app, you can check and adjust the charging status at any time. It offers power up to 22 kW and is equipped with a type B residual current device (AC 30 mA + DC 6 mA) that ensures protection against residual current, overvoltage, and undervoltage. The charging station is available in various cable lengths, allowing flexible installation according to the user's needs.

⚡ Power: 22 kW (6A / 10A / 13A / 16A / 20A / 24A / 32A)

🔌 Charging connector: Type 2

🧲 Voltage: 230–400 V AC

🔋  Charging: Single-phase (up to 7 kW) or three-phase (up to 22 kW)

🔒 Safety: RCD Type B (AC 30 mA + DC 6 mA)

📝 Features: IP55 (Wallbox), IP54 (Type 2 connector) – Protection against overload, overvoltage, undervoltage, current leakage, overheating, grounding fault and short circuit, waterproof, dustproof

📏 Cable length: 5 m, 7 m, 10 m

🛠️ Installation: Easy installation with the option to connect via a CEE socket indoors or outdoors

🌡️ Temperature: -25℃ to +55℃

🌐 Compatibility: Suitable for all electric vehicles with a Type 2 connector

📐 Size: 5 m, 7 m, 10 m cable (43 × 32 × 22 cm)

Remote control via app

The new app function enables smart charging via Wi-Fi. You can start, stop, or set the current and time for charging anytime and from anywhere.

Control directly on the wallbox

All settings can also be made directly on the device using the buttons.

Control via car

Charging can also be set directly through your vehicle's system.

Adjustable current and timer

The current can be set in the range of 6A–32A according to your needs.
The timer allows automatic start and end of charging (0.5–8 hours).

Easy installation

A mounting kit and instructions are included in the package. You can handle the installation yourself.

Plug-and-play

To charge, simply plug into a CEE socket.

Maximum safety

Protection against overvoltage, overheating, short circuit, current leakage, and other risks.
Current protection Type B 30mA AC + DC 6mA.

Water and dust resistance

IP55 rating – reliable operation even in rain, frost, and heat.

Family package

The package includes 3 RFID cards – each household member can have their own.

Package contents

• 22kW wallbox (1 pc)

• Mounting tool kit (1 pc), including mounting plate and screws

• RFID card (3 pcs)

• Connector holder (1 pc)

• Microfiber cloth (1 pc)

• User manual (1 pc)
